Kubus Drop In Multideck Self Service 1175mm

3x 1/1 GN Capacity. 1175mm Wide. Fixed Back

£6,799.99 (Ex Vat)

Description

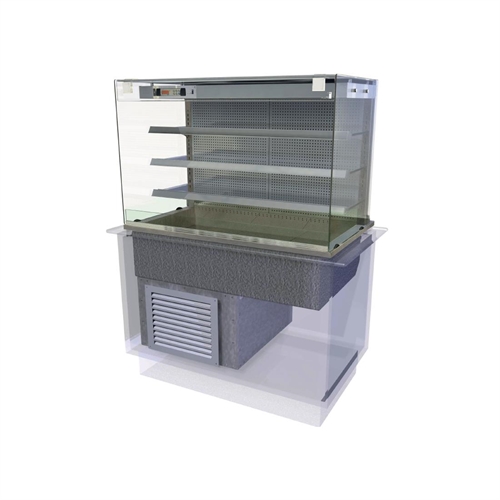

Illuminate, chill and display refrigerated food or drink with CED’s rectangular shaped Kubus self help cold multideck (Fixed Back). This energy efficient 3/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The front loading multideck is designed for use in a wall sited countertop and fitting the air grills and rear vent supplied, provide the ventilation needed for the underslung refrigeration condensing unit. Flat, toughened glass sneeze screen and side glass protection are provided to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adjustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features a product stop and 40mm tall ‘point of sale’ display/ticket strip. The 3/1 GN cold well area below the shelves provides further chilled merchandising. Product illumination is from diffused lighting in the rectangular profile gantry. The gantry also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to customer side of the display. The multideck has 24 hour operation and holds food core between 2°C to 5°C. The display area has bright polished steel inner perforated back panels and the self help superstructure is made from bright polished steel and aluminium rectangular profiles. Modular removable deck plates in the chilled multideck make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation.

  • Capacity:3 x 1/1 GN
  • Colour:Chrome
  • Dimensions:775(H) x 1175(W) x 660(D)mm
  • Material:Stainless Steel & Aluminium
  • Power Type:1.73kW 230V 13A
  • Refrigerant:R290
  • Temperature Range:2°C to 5°C
  • Voltage:230V
  • Warranty:1 Year
  • Weight:158kg
  • Rectangular gantry in bright polished steel & aluminium housed in a toughened glass roof and side panels
  • Features 3 chilled toughened glass display shelves with adjustable height and angle
  • The 3/1 GN well display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)
  • Self service. (Fixed back)
  • Each chilled shelf features product stop and 40mm tall ‘point of sale’ display/ticket strip
  • Gantry is fitted with toughened glass sneeze screen and side glass protection to the customer side of the display
  • Product illumination is from diffused lighting in the rectangular profile gantry
  • Flat glass profile is designed to complement other units within the Kubus range
  • Ventilation grills rear vent and installation lifting kit are supplied with the display together with a 2m lead for connection to a single 13 amp socket
  • Drinks display examples: bottled or canned drinks water lemonade wine juice. Food display examples : Pies pasties sausage rolls baguettes rolls cakes & fruit
  • Special-to-order. Non-returnable
  • 3-4 weeks
