Kubus Drop In Cold Well Self Service 1525mm

Description

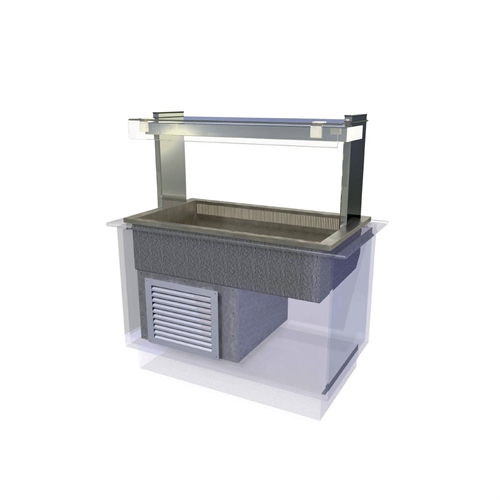

Illuminate, chill and protect refrigerated food or drink with CED’s rectangular shaped Kubus self help cold well drop in display. This energy efficient 4/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The self help superstructure is made from bright polished steel and aluminium rectangular profiles, with flat, toughened glass sneeze screen protection to the customer side of the display. Product illumination is from diffused lighting in the rectangular profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard and holds food core between 2°C to 5°C. Modular removable deck plates in the chilled island well make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separately.

• Capacity:4x 1/1 GN
• Colour:Chrome & Black
• Dimensions:540(H) x 1525(W) x 660(D)mm
• Material:Stainless Steel & Aluminium
• Power Type:1.22kW 230V 13A
• Refrigerant:R290
• Temperature Range:2°C to 5°C
• Voltage:230V
• Warranty:1 Year
• Weight:136kg
• Rectangular gantry in bright polished steel powder coated black gantry side panels and aluminium profile
• The 4/1 GN well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
• Gantry fitted with flat toughened glass sneeze screen to customer side of display for food protection
• Self help application
• Features eye level gantry mounted digital temperature display & control panel (to operator side of display). Controls can be fitted to customer side of the display on request
• 24 hour operation as standard
• Product illumination is provided from diffused lighting within the gantry
• Flat glass profile is designed to complement other units within the Kubus range
• Ventilation grills and installation lifting kit are supplied with the display
• Ventilation grills and installation lifting kit are supplied with the display together with a 2m lead for connection to a single 13 amp socket
• Drinks display examples: canned drinks water beer fruit juice. Food display examples : Pies sandwich fillings cheese sandwiches baguettes rolls pastries cakes & fruit
• 3-4 weeks
